Cost-Effective PP Carpet for Office Floors

Part 1: Description

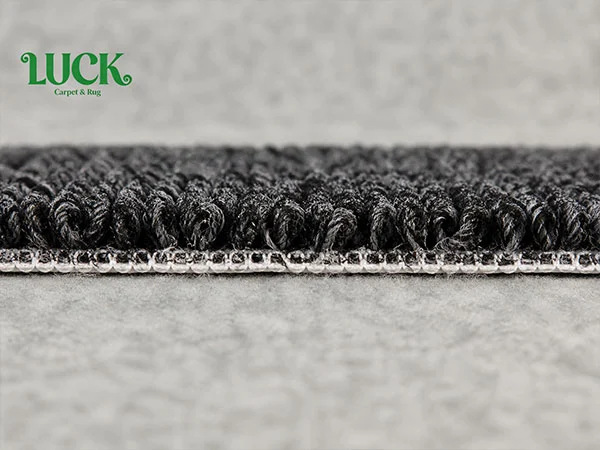

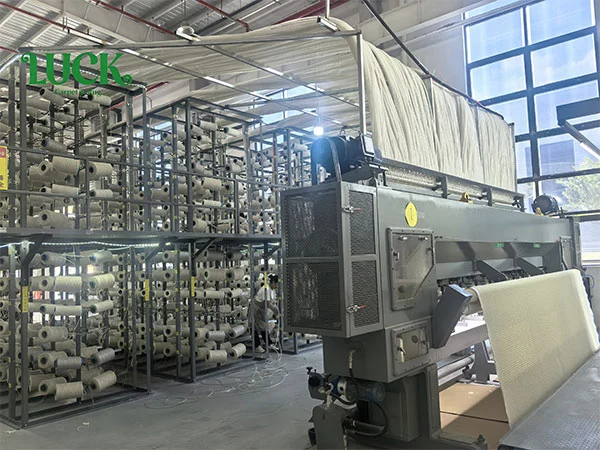

LUCK Carpet makes this polypropylene tufted wall to wall carpet at our 26,000 m² plant in Foshan, Guangdong, and has exported it for fourteen years, for cellular offices, back offices and call centres where the floor has to take the noise down and survive castor chairs. The build is a 4 mm loop pile at 500 g/m2 on an anti-slip textile backing in 4 m (13.1 ft) usable width. It is a budget commercial floor and we treat it as one: absorption comes from the tuft structure and the underlay, and castor traffic is the limit we are honest about.

Part 2: In-Depth Product Introduction

What a 4 mm loop can and cannot absorb

Absorption in a low loop comes from structure, not mass. Each tuft traps a small air cavity and the yarn damps sound energy instead of reflecting it, so a thin tufted floor does measurable work among hard desks. Measured to ISO 354, this construction gives a weighted absorption value of 0.25 laid direct, rising to 0.40 over a 6 mm recycled felt underlay.

Impact noise follows the same rule. Over a 200 mm structural slab, direct glue records an impact sound reduction of 14 dB to ISO 717-2, and the same carpet over the felt underlay reaches 21 dB, which is the difference a neighbour below actually hears. Cellular offices gain most, because a small room with a hard floor sounds boxy.

Castor rigs, static load and the limits of a thin loop

We run this construction on the castor chair rig as well as the Martindale bed, because a swivel chair does something the abrasion test does not. Our Foshan lab keeps every batch on that rig; the last eight averaged 34,000 rubs to defined change at 5 kPa, the lowest figure in our PP tufted range, and tuft bind is 36 N to ISO 4919. A castor load concentrates on four small wheels, so plan a replacement cycle around it.

Compression is the other half of the story. Static loading leaves a 14 % recovery deficit to ISO 3416, and under a chair footprint that never moves the pile takes a set it will not fully release. Length change after wet cleaning is 0.24 % to ISO 2551, so the floor stays tight at the skirting. Peel strength is 30 N/50 mm and reaction to fire is class Bfl-s1 to EN 13501-1.

Part 3: Technical Specification Table

Figures below come off the finished roll in our Foshan plant, and pile weight counts face yarn only. We classify this construction at ISO 10874 class 22 and 23 rather than class 33. If a tender document asks for a heavy contract class, this is the wrong product for that floor and we will say so before you order.

Part 4: Product Features & Applications

Office flooring decisions come down to three questions: how much a thin polypropylene loop can carry before it looks tired, how the floor plan divides into zones with different loads, and what castor chairs and static do at a workstation cluster.

1. Polypropylene in a cellular office: where the limits sit

A cellular office of 12 to 20 m² with two desks and four-legged chairs is easy work. Abrasion, stain resistance and cleaning cost all sit on the right side of the ledger, and the 500 g/m2 face keeps a small room quiet enough for focused work. Light fastness is Grade 5 to ISO 105-B02, which covers a room with windows but not a glazed south-facing atrium.

The limits appear in three places. A cellular office with four castor chairs and fourteen hours of daily occupancy will show chair tracks inside two years. A comms room needs static control this backing does not provide. And a floor extracted four times a year will outlive one extracted twice a month. Ask for the replacement cycle in writing.

2. Cellular, co-working, back-office and call-centre layouts

Each layout loads the floor differently. Cellular offices load it lightly and evenly, with wear at the door swing. Co-working floors load the circulation route and the bench edges, and spilled coffee is the main risk. Back offices load a few aisles hard and leave the rest untouched. Call centres load one 700 mm band at every workstation, all day, in the same place.

A Toronto insurer re-fitting a back office and call centre took 3,400 m² in 34 rolls plus four spares, with the call-centre bay over a recycled felt underlay and corridors direct-glued. The brief was plain: keep the floor quiet, keep it repairable desk by desk, and hold the fit-out to a commercial budget.

3. Castor abrasion and static build-up at workstation clusters

Chair castors abrade and compact at the same time. In a call centre the same 700 mm band carries every chair in the room, and six months of that looks like three years anywhere else. We recommend soft polyurethane castors on this construction, plus a 1,200 mm by 1,500 mm clear polymer chair mat at any desk worked across more than one shift a day.

Static is the other cluster problem. Polypropylene is an insulator, and at low winter humidity a person sliding out of a fabric chair can carry a charge that snaps on a door handle. This backing is not conductive and we do not sell it as an ESD floor. Hold relative humidity above 40 %, fit antistatic castors, and specify a carbon-backed tile elsewhere for a server room.

Case Study

Case Study: 3,400 m² for a Toronto insurer's back office and call centre

An insurance group in Toronto, Canada, re-fitted a 3,400 m² back office and call centre and needed a floor that would stay quiet and could be repaired desk by desk. The specification called for one shade throughout, direct glue in the corridors and a felt underlay under the call-centre bay. We supplied 34 rolls of 4 m by 25 m plus four spares from one masterbatch, and held the batch record for the re-order.

After handover, reverberation in the call-centre bay measured 0.64 s against 0.92 s before the fit, and team leaders reported fewer noise complaints at the pod ends. Eighteen months on, the lab measured 12 % thickness loss to ISO 3416 under the chair stations against 6 % in the aisles, which is the replacement signal we asked them to watch. Two further floors in the same building were ordered on this construction.

Quality Assurance & Testing

The test sheet behind an office specification

Office buyers often inherit a specification they did not write, so here is our sheet on this construction: abrasion 34,000 rubs to ISO 12947-2 at 5 kPa; tuft bind 36 N to ISO 4919; peel 30 N/50 mm; length change 0.24 % to ISO 2551; static load thickness loss 14 % to ISO 3416; sound absorption 0.25 to ISO 354, rising with a felt underlay; light fastness Grade 5 to ISO 105-B02 and rub fastness Grade 4 to ISO 105-X12; Class A to GB 18587-2001 on indoor air; and class Bfl-s1 to EN 13501-1 with EN ISO 9239-1 and EN ISO 11925-2 reports behind it. Ask any supplier for the same in writing, and note that we exhibit at Shanghai Hospitality Design Week.

Frequently Asked Questions

Is a 4 mm loop heavy enough under castor chairs?

For occasional castor use, yes. For a desk occupied eight hours a day, no. This is a class 22 to 23 construction, and we would expect visible chair tracks within about two years without mats. Use soft polyurethane castors, add a clear chair mat at heavy desks, and budget a bay-by-bay replacement rather than a ten-year life.

How much waste should we add when measuring an office floor?

Sketch the plan, split it into rectangles, measure to the column faces, and never deduct a cut-out smaller than 0.5 m². Add 5 to 10 % for a simple open floor, the full 10 % where corridors and doorways need seam adjustments, and 12 % for an irregular plan. Send the dimensioned drawing and we will check the linear metres against the 4 m roll.

Can this carpet go over underfloor heating?

Yes. The 4 mm loop with its textile backing and pre-coat measures under 0.10 m²K/W in combined thermal resistance, so heat passes without a measurable penalty, and the low length change to ISO 2551 keeps seams closed through heating cycles. Keep the surface temperature inside the limit your heating supplier states.

How do we lift desk and chair dents?

Drop a few ice cubes into the crushed patch, let them melt, then blot with a white towel. Work the pile up with a stiff brush or a carpet rake. For a stubborn dent, hold a steam iron 20 to 30 mm above a damp cloth over the spot, let the steam lift the yarn, then vacuum once dry. Never rest a hot iron on the carpet itself.

Product Details

Underlay, edge finish and ordering an office roll

The surface is a 4 mm level loop with a low sheen that hides vacuum marks better than a cut pile. Rolls come 4 m by 25 m on cores, cut square at the edges. On a direct-glue fit we butt the seams over a pressure-sensitive adhesive and roll them; over underlay we tape and stretch. Underlay is the one upgrade worth paying for, since felt takes absorption from 0.25 to 0.40.

Standard shades ship 15 to 20 days after deposit and custom designs 25 to 30 days from strike-off approval, with a minimum order of 500 m². Office orders include a spare allowance so a damaged bay can be patched without re-fitting the floor, and the 8-year face pile warranty applies to the installed area. Send your layout drawing, and LUCK Carpet will return a measurement check, a roll plan and a quotation.
