Heavy-Traffic Nylon Carpet for Hotel Corridors

Part 1: Description

LUCK Carpet manufactures this nylon tufted wall to wall carpet in Foshan, Guangdong. It is a 100 % nylon cut pile, 6 mm at 800 g/m2, on an anti-slip textile backing and supplied in a 4 m usable width. Corridors are the application: hotel guest floors, hospital routes, student housing, office link ways. Each one is a long narrow room where the whole floor is a walkway and every wall is shared with somebody.

Part 2: In-Depth Product Introduction

What a 6 mm cut pile does to impact noise through a shared wall

Footfall noise travels two ways in a corridor: through the air as the sound of a step, and through the structure as impact vibration into the slab and the party wall. Textile flooring addresses the second, and that is the part that keeps neighbours awake. Measured to ISO 717-2, this construction on a concrete slab improves impact sound by Delta Lw 22 dB compared with the bare floor.

Twenty-two decibels is not a small number when the slab is the only separation between two rooms, and it is not sufficient on its own. Impact performance comes from the whole floor build-up: underlay choice, adhesive coverage and the way the carpet turns down at the skirting all change the result. Weighted absorption is aw 0.20 to ISO 354, which will not fix an echo. Where a corridor separates bedrooms, we recommend a 6 mm crumb underlay beneath the carpet.

How the roll edge and the wall detail decide year eight

Corridor carpet fails at its edges long before it fails in the middle. The wall edge takes the vacuum every day, the threshold takes the door swing, and the corner outside a service lift takes the trolley. We cut every roll at a thermally secured selvedge so it does not unravel in the container, and we tuft the full 4 m usable width so a 1.6 m to 2.4 m corridor needs no lengthwise seam. Dimensions stay under 0.25 % length change to ISO 2551.

Our standard corridor detail sets the carpet onto a tackless strip fixed 8 mm from the wall, stretches it, then tucks it down behind a skirting or wall base. Full-spread adhesive is the alternative where rolling load is heavy, and it is the better choice outside service lifts and along hospital routes. What does not work is a field-cut edge hidden with sealant, the most common cause of fraying we are called to inspect.

Part 3: Technical Specification Table

Values in the table come from finished production at our Foshan plant. The 4 m usable width matters most in a corridor, because it usually removes the lengthwise seam entirely and leaves only the crossings at doorways.

Part 4: Product Features & Applications

A corridor is the only room in a building that nobody chooses to be in. It is judged in passing, in seconds, by a guest walking to their room, a nurse pushing a trolley, or a student who has walked the same 40 m twice a day for a year. One construction has to answer all of them.

1. Cutting impact noise on a party-wall corridor

The complaint usually arrives as furniture being moved upstairs at eleven at night, even when nobody is moving furniture. Structure-borne impact from a footstep on a hard corridor floor radiates into the room beside it and reads as a low thud. Carpet breaks that path at the surface, before the energy reaches the slab. The Delta Lw 22 dB figure is measured over a 6 mm crumb underlay on 150 mm concrete.

Acoustic performance is easy to overstate, so here is the limit. A thin cut pile absorbs little airborne sound on its own, and aw 0.20 to ISO 354 will not rescue a corridor that echoes because the ceiling is plaster and the walls are painted block. It will remove the sharp click of a heel and cut the impact reaching the room behind the wall. With a hard ceiling and hard walls, treat those too.

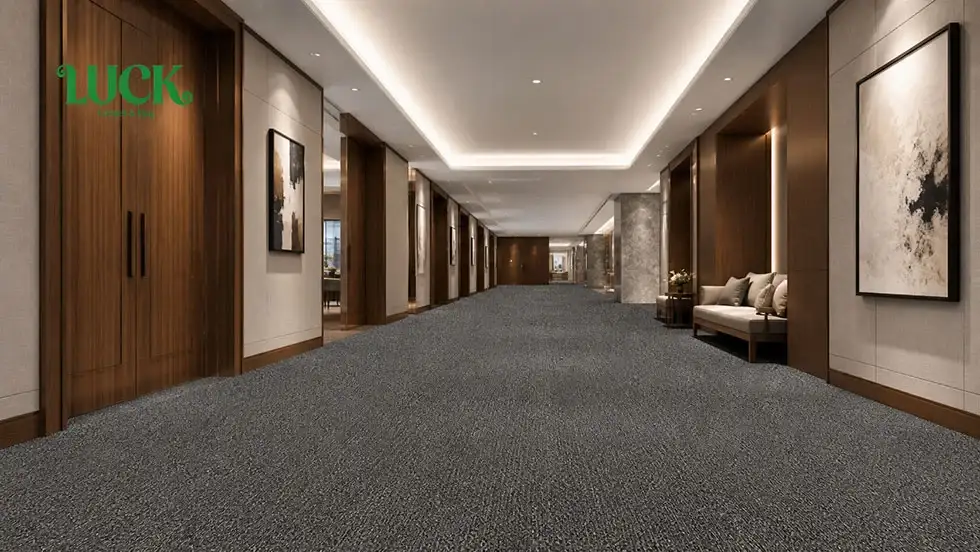

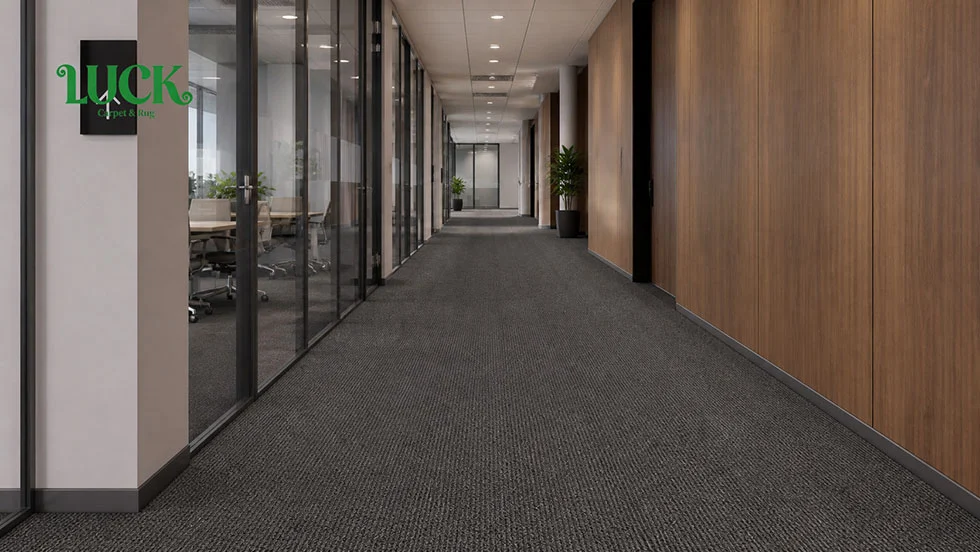

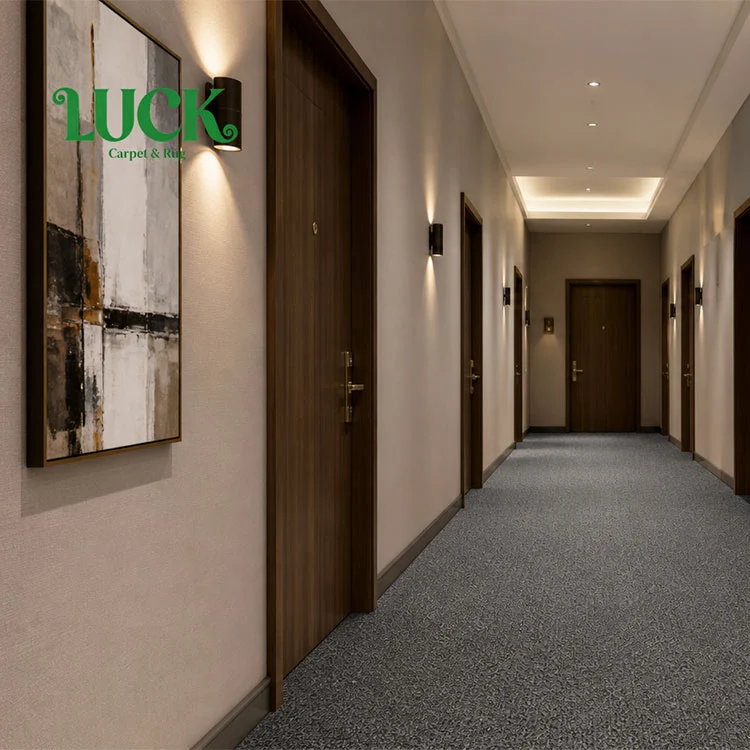

2. Hotels, hospitals and student housing: three corridor types

Hotel guest corridors take quiet, rolling luggage and housekeeping carts. Hospital routes take beds, wheelchairs and trolleys under frequent cleaning with aggressive chemicals, and they must not trap soil. Student housing corridors take high footfall, heavy bags, food spills and very little preventive maintenance. All three are 1.6 m to 2.4 m wide, but the cleaning regime and the tolerance for visible staining differ enormously, and that changes the shade you should choose.

For a 380-room convention hotel in Seoul, South Korea we supplied 3,100 m2 of guest corridor and lift lobby from 31 rolls, all on the 4 m width so each run was a single length. The brief was a dark ground with a fine linear pattern to hide luggage scuffs. Two winters of performance data follow in the case study below.

3. Wall-edge fraying, door thresholds and trolley bollards

Edge fraying is the first visible failure in almost every corridor we inspect. At DOMOTEX Hannover we asked 57 housekeeping managers when they first notice corridor carpet edges fraying; thirty-four gave the same answer, the first full winter after handover. A vacuum head running along the wall lifts the pile and wears through the backing inside a year. The cure is a wall detail rather than a wider skirting.

Thresholds fail for a different reason. Every door that swings across a carpet presses the pile flat, and a badly set threshold bar leaves a lip that catches wheels and lifts the carpet. We supply setting-out drawings that place thresholds at the door centre line and specify a flat bar rather than a dome profile in trolley routes. Tuft bind measures 36 to 44 N to ISO 4919, which is what stops a lifted tuft becoming a runner.

Case Study

Seoul, South Korea: 3,100 m2 of guest corridor for a 380-room hotel

Two guest towers joined by a 60 m link corridor above a ballroom, and the rooms beneath that link generated most of the building's noise complaints. The package covered 3,100 m2 of corridor, lift lobby and link way from 31 rolls at 4 m usable width, with a 6 mm crumb underlay specified for the link section only.

Its brief called for a dark base with a fine linear pattern that would hide scuff marks from housekeeping carts and luggage. We tufted the order in one run to hold the shade across both towers and supplied setting-out drawings for 214 door thresholds. Measured after 18 months: impact sound on the link improved by Delta Lw 22 dB to ISO 717-2, thickness loss measured 8 % against the ISO 3416 baseline, and no threshold shows edge fraying.

Quality Assurance & Testing

Acoustic and durability testing on this corridor construction

Seven measurements travel with every corridor order from this family. Impact sound to ISO 717-2 comes back at Delta Lw 22 dB over a 6 mm crumb underlay on 150 mm concrete. Abrasion to ISO 12947-2 at 5 kPa averaged 40,100 rubs to defined change across our last five corridor orders. Tuft bind to ISO 4919 measures 42 N, backing laminate peel 35 N/50 mm, and dimensional stability after wet cleaning to ISO 2551 holds at 0.2 % length change. Reaction to fire is Bfl-s1 to EN 13501-1, with EN ISO 9239-1 and EN ISO 11925-2 behind it, and indoor air quality is Class A to GB 18587-2001.

Frequently Asked Questions

How much does this carpet reduce noise in a corridor?

On a 150 mm concrete slab with a 6 mm crumb underlay, impact sound improves by Delta Lw 22 dB to ISO 717-2, which cuts the thud reaching the room behind the wall. Airborne absorption is limited: weighted absorption is aw 0.20 to ISO 354, so a hard ceiling still needs separate treatment.

What roll width do you recommend for a hotel corridor?

Rolls are 4 m (13.1 ft) usable width, so a 1.6 m to 2.4 m corridor is covered by a single length with no seam running along its length. You cut one edge and the offcut serves the next run or a lift lobby. Beyond 4 m we plan a seam on the centre line.

The carpet is fraying along the party wall. What causes that?

Never leave a raw cut edge against the skirting. Stretch the carpet onto a tackless strip set 8 mm from the wall, tuck the edge down, and finish with a skirting or wall base. In corridors with heavy trolley traffic, full-spread adhesive is more reliable, and we supply this detail as a drawing.

How often will a corridor carpet need replacing?

In a hotel with daily vacuuming and annual deep cleaning, expect 8 to 10 years before appearance rather than structure forces a change. Hospital routes and student housing run shorter cycles because of cleaning chemicals and spill frequency. The 8-year face pile warranty covers tuft retention, not cosmetic soiling.

Product Details

Cut pile surface, roll format and corridor laying sequence

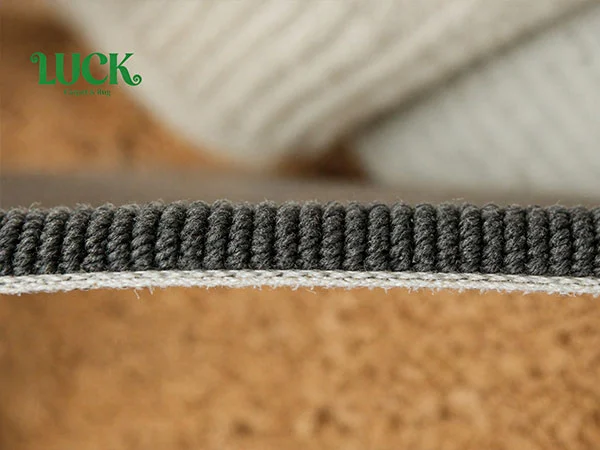

Dense, upright and matte, the 6 mm cut pile keeps a corridor from looking glossy under downlights. Vacuum marks run clean, and a fine linear pattern holds its edges because the 800 g/m2 face has enough body behind the design. Rolls arrive 4 m (13.1 ft) usable width and roughly 25 linear metres long, on cardboard cores under PE film.

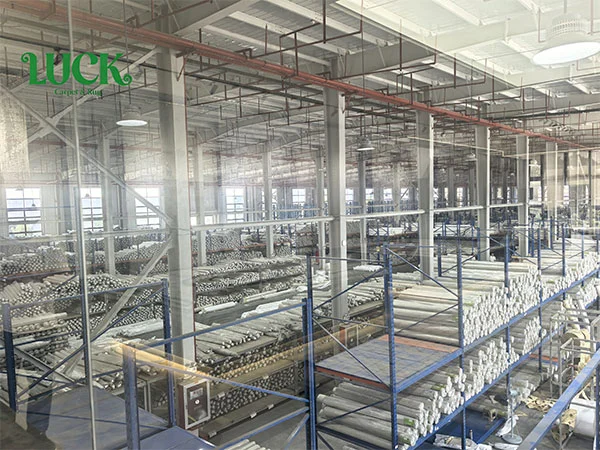

Lay from one end, keep pile direction constant down the whole run, and place any crossing seam on a door centre line. Use a tackless strip and a power stretcher for standard corridors, or full-spread adhesive for hospital and service routes. Custom design is available: your artwork, our strike-off, approval before production. LUCK Carpet has 180 staff on a 26,000 m2 site in Foshan.
